Proto J10032L Includes

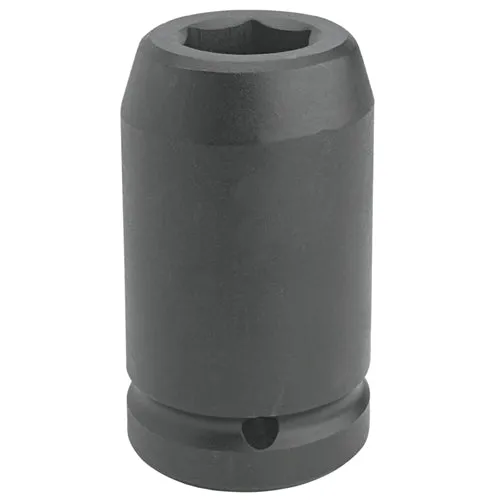

- (1) 1" DRIVE DEEP IMPACT SOCKET 2" - 6 POINT
Proto J10032L Features
- Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
- The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
Proto J10032L Specifications
| SIZE | 2'' |
| NUT END OUTSIDE DIAMETER | 3" |
| DRIVE END OUTSIDE DIAMETER | 2-3/8" |
| NUT DEPTH | 1-7/32'' |
| BOLT CLEARANCE DEPTH | 2-3/4" |
| OVERALL LENGTH | 4-1/4" |
| WEIGHT | 4.31 lbs |
| CRUSH RETAINING RING | JRR10034 |
| O-RING | J10000R2 |
| RETAINING PIN | J10000P2 |
| DRIVE SIZE | 1" |
| POINT SIZE | 6 |
| FINISH | Black Oxide |
| LENGTH TYPE | Deep |
| UNIT OF MEASURE | Fractional |
